How to Change Drawing Tool Line Thickness

You can now adjust the thickness of the lines in all drawing tools according to your preferences. Here are the steps.

1. Open Drawing tool menu

Click the artist's palette icon

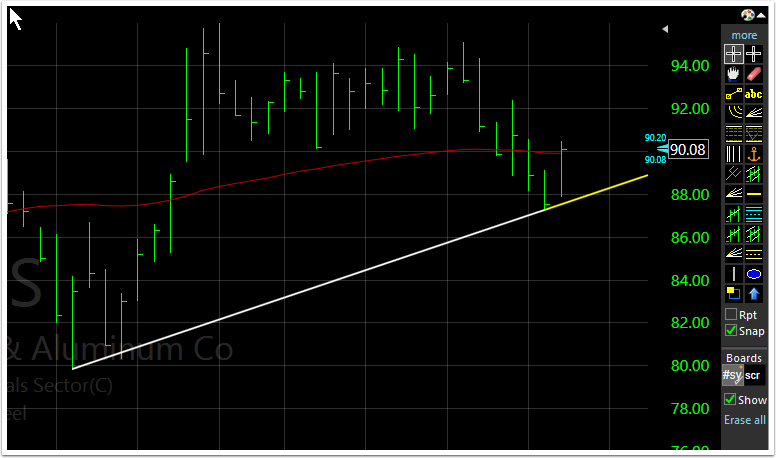

2. Add drawing to chart

Select desired drawing tool

Click and drag to add to chart.

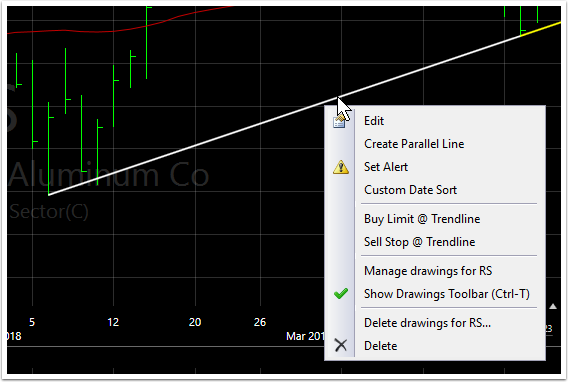

3. Click on the drawing tool on the chart

This opens the dropdown menu.

4. Choose Edit

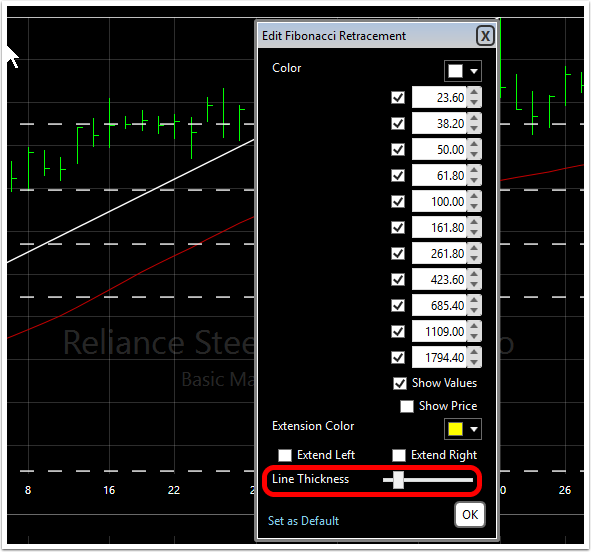

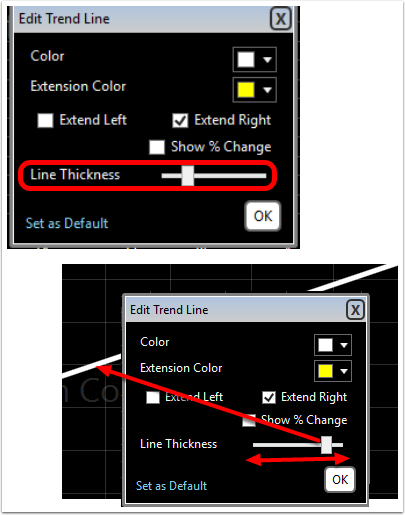

5. Set line thickness

Use the slider to increase/decrease line thickness

6. Set as Default line thickness (Optional)

Click Set as Default to save the line parameters with your default drawing settings.

7. Repeat for any drawing tools you want to change.
